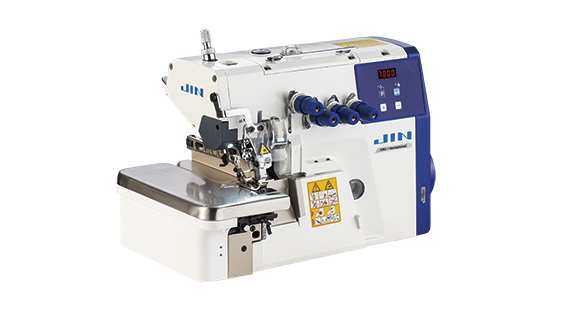

Jin M1 Series

The Jin M series features a Direct-drive, High-speed, Overlock / Safety Stitch Machine.

The top sewing speed of the M-1 series reaches 7,000 sti/min.
The direct drive system has been implemented.
Both the control box and the operation panel are integrated with the machine head.

The M-1-SF type sewing machine comes with a 3-point sensor automatic thread trimmer, which prevents the operator from accidentally cutting the fabric.

Machine Type:

Direct-drive, high-speed overlock / safety stitch

Max Speed:

7,000 stitches per minute

Stitch Length:

3.8 mm fixed

Needle Options:

1–3 needles (needle gauge ranges from 2.0 to 5.0 mm)

Overedging Width:

4–6 mm based on the model

Presser Foot Lift:

5 mm

Needle Bar Stroke:

23 mm

Lubrication:

Automatic (ISO VG18 oil, cartridge filter)

Controls:

LED light, voice assistance, USB panel for updates

Thread Trimmer:

3-point sensor auto-trimmer standard (2-point available for certain models)

Optional Add-ons:

Pneumatic/solenoid auto-lifter, side cutter, suction devices
