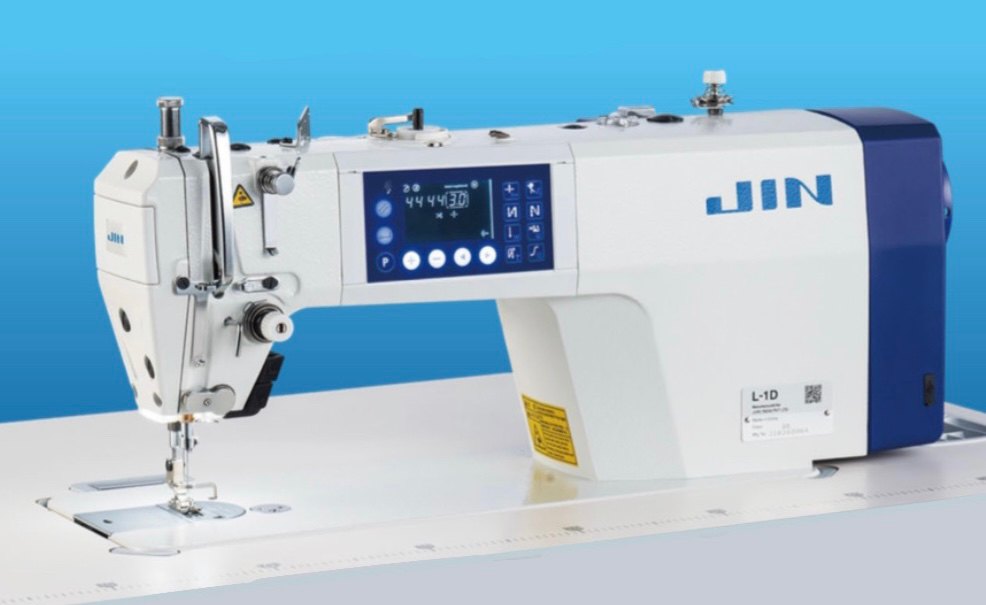

Jin L1-D

Juki Jin L1-D

• Operation panel and control box are integrated with the machine head

• Direct-drive type

• USB port

• Voice guidance for assisting the operator

• Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn

• LED hand light

Digital feed control motor is installed with direct-drive servomotor. The sewing machine has been integrated with the operation panel and the control box for ease of use. All of the L-1D series adopt the direct drive system.

Type:

Direct-drive, single-needle lockstitch machine

Max Sewing Speed:

5,000 stitches per minute

Stitch Length:

0–5 mm

Presser Foot Lift:

5 mm (hand), 13 mm (knee)

Needle System:

DBx1 (#11–#18)

Features:

Automatic thread trimmer, digital feed control, USB port, LED needle lamp, voice guidance, built-in bobbin winder, reverse feeding, automatic foot lifter

Power Supply:

Single-phase 220V

Power Consumption:

Approximately 940 VA

Included Accessories:

10 DBx1 #80 Schmetz needles, screwdrivers, machine cover, 5 bobbins, machine manual
